Ice Maker Replacements

Models:	IceMaker Part#'s:
click on your Model# or Part# below to go that specific Ice Maker Part
Ice Makers
22IM, 201FD, 211, 241, 245, 249FF, 251, 2411, 2511, 3211, 361, 501f, 511, 532, 542, 550, 561, 590, 680, 685-2/3, 690, 695-2/3, 700, 700-2, 700TCI, 700TFI, 700TCI-3, 700TFI-3, 700BCI-3, 700BFI-3, 736TCI-3, 736TFI, 801	4200520PR
550, 611, 650	4200522PR
201RIM, 245	4201760PR
550, 611, 650, 685-2, 695-2	7002734PR
611-3, 611G-3, 650-3, 650G-3, 695-3, 685-3	7002736PR
532, 542, 561, 601F, 632, 642, 601F-2, 632-2, 642-2	7002738PR
601F-2&3, 661-2&3, 632-2&3, 642-2&3, BI-36F, BI-36S, BI-42S, BI-42SD, BI-48S, BI-48SD, IC-27F, 736T-3, 700T-3, ID-30FI, ID-30CI, ID-36CI, ID-24FI, IC-24CI, IC-18FI, IC-30FI, IT-30FI, IT-36CI, IC-24FI, IC-36FI	7002740PR
2011ICE, 2711, 2811, 550	7002748PR
Icemaker Head Module	W10122536PR
Icemaker Inlet Valves - Dual & Single
590 - Dual Water Valve	4201460
680, 690 - Dual Water Valve	7014677
685, 685-2, 685-3, 695, 695-2, 695-3 - Dual Water Valve	7004266
501F, 511, 532, 542, 550, 561, 700TCI, 700TFI, 700BFI	4201450
201FD, 201RIM, 2011ICE, 211, 215FD, 241, 2411, 245 249FF, 251, 2511, 2711, 2811, 3211, 361 501F, 511, 532, 550, 561, 801, 22IM	4201440
532, 542, 561, 601F, 611, 632, 642, 650 601F-2, 611-2, 632-2, 642-2, 661-2 601F-3, 611-3, 632-3, 642-3, 661-3 700TFI-2, 700BFI-2, 700TCI-2, 700TFI-3 700TCI-3, 736TCI-3, 700BCI-3, 700BFI-3	4202790
700TCI-3,700TFI-3, 736TCI-3,700BCI-3,700BFI-3, UC-24C	7004267
Replacement Harnesses
Plug Adapter Harness - Round	7014702PR
700BF/I-3, 700BC/I-3	7016700PR
501F, 511, 532, 542, 550, 561, 590	7015689PR
680, 690, 685-2/3, 695-2/3	7024962PR
249FF/I	7020748PR
700	4202310PR
Shut off Arms
201F, 211, 215F, 241, 244, 245, 251, 361, 2411, 2511, 3211, 801	7012821PR
22IM	7016662PR
249FF	7016481PR
501F, 532, 542, 561, 700TC/I, 700TF/I, 700BF/I, 700BC/I-3	7014697PR
511, 550, 590	4202730PR
680, 690, 685, 695	7026359PR
700TCI, 700TFI, 700BFI - Arm Assembly	4202270PR
700TFI,700TCI,700BFI, 700TFI-2,700TCI-2,700BFI-2,700TCI-3 700TFI-3,736TCI-3,700BCI-3 700BFI-3, 648PROG,661-2/3	7014668PR
700TFI,700TCI,700BFI, 700TFI-2,700TCI-2,700BFI-2,700TCI-3 700TFI-3,736TCI-3,700BCI-3 700BFI-3, 648PROG,661-2/3 - Connecting Rod	7015920PR
700TF/I-3,700TC/I-3, 736TC/I-3,736TF/I-3) NOTE: Also Used On Early 700 Series When Using The 7042073 Ice Maker	7023022PR
Rudder Arms
550, 611, 650, 680, 690, 611-2, 650-2, 685-2, 695-2	7014671
611, 650	7016326

Ice Maker	Model	Buy Now!

4200520PR Ice Maker Replaces Part# 3140070	4200520PR Ice Maker 22IM, UC24C, 201FD, 211, 241, 244, 245, 249FF, 251, 2411, 2511, 3211, 361, 501f, 511, 532, 542, 550, 561, 590, 680, 690, 685-2/3, 695-2/3, 700, 700-2, 700TCI-3, 700TFI-3, 700BCI-3, 700BFI-3, 736TCI-3, 736TFI, 801 Modular icemaker only, no harness or arm (use from old icemaker or order new harness or wire arm, if needed), plastic module under white cover 22IM Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7016662 201FD/211 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7012821 241/251 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7012821 244 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7016481 245 Use Starting With Serial #717272 Prior to Serial #717272, Use Pt# 4201760 NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7012821 249FF Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7020748 NOTE: FOR SHUT-OFF ARM, ORDER 7016481 2411/2511 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7012821 361/3211 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7012821 501F Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 511 Use Regardless of Serial Number NOTE: ALSO SEE 4202740 NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 4202730 532 Use Prior to Serial #1283390 & between #1284539 to #1350590 From Serial#1283390 to #1284539 and starting with Serial #1350590, Use Pt# 7002738 NOTE: ALSO SEE 4202750 NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 542 Use Prior to Serial #1351190 Starting with Serial #1351190 Use Pt# 7002738 NOTE: ALSO SEE 4202750 NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 550 Use From Serial #681166 to #681565, and From #M702716/P700765 to #M/P1274690, and Starting with Serial #1275889 Prior to Serial #681166 & from #681565 to #M702716/P700765 Use Pt# 7002748 From #1274690 to #1275889 Use Pt# 7002734 NOTE: ALSO SEE 4202740 NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 4202730 561 Use Prior to Serial #1350840 Starting with Serial #1350840 Use Pt# 7002738 NOTE: ALSO SEE 4202750 NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 590 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7015689 NOTE: FOR SHUT-OFF ARM, ORDER 4202730 680/690 Use Regardless of Serial Number NOTE: Must Also Order Plug Adaptor 7024962 NOTE: Must Also Order Shutoff Arm 7026359 685-2/3 Use Prior to Serial #2662411 NOTE: Must Also Order Plug Adaptor 7024962 NOTE: Must Also Order Shutoff Arm 7026359 Starting With #2662411 Use Pt# 7002736 695-2/3 Use Prior to Serial #2660861 NOTE: Must Also Order Plug Adaptor 7024962 NOTE: Must Also Order Shutoff Arm 7026359 Starting With #2660861 Use Pt# 7002736 700 Use Regardless of Serial Number NOTE: FOR Fill Tube Htr/Harness 4202310 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 700-2 Use Regardless of Serial Number NOTE: FOR SHUT-OFF ARM, ORDER 7014697 700TCI-3 Use Pt# 7002740 700TFI-3 Use Prior to Serial #3100000 Starting With Serial#3100000 Use Pt# 7002740 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 736TCI-3 Use Pt# 7002740 736TFI Use Pt# 7002740 700BCI-3 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7016700 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 700BFI-3 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7016700 NOTE: FOR SHUT-OFF ARM, ORDER 7014697 801 Use Regardless of Serial Number NOTE: FOR WIRE HARNESS, ORDER 7014702 NOTE: FOR SHUT-OFF ARM, ORDER 7012821 Make sure you are ordering the proper icemaker There are No Refunds!	$189.00

4200522PR Ice Maker	4200522PR Ice Maker 550, 611, 650, 680, 690 Icemaker Assy NOTE: FOR INTERNATIONAL APPLICATIONS, Contact Us for Pt# 4204210 AND 4204230 NOTE: FOR RUDDER ARM, ORDER 7014671 550 Use From Serial# 1274690 to Serial# 1275889 or Alternate Ice Maker Pt# 7002734 Use Prior to Serial# 1274690 & after Serial# 1275889 or Alternate Ice Maker Pt# 4200520 With Harness Pt#7024962 and Shutoff Arm Pt#7026359 611 Use Regardless of Serial# or Alternate Ice Maker Pt# 7002734 650 Use Regardless of Serial# or Alternate Ice Maker Pt# 7002734 680 Use Regardless of Serial# or Alternate Ice Maker Pt# 4200520 With Harness Pt#7024962 and Shutoff Arm Pt#7026359 690 Use Regardless of Serial# or Alternate Ice Maker Pt# 4200520 With Harness Pt#7024962 and Shutoff Arm Pt#7026359 611-2 Use Prior to Serial# 2627085 or Alternate Ice Maker Pt# 7002734 Starting With Serial# 2627085 Use Pt# 7002736 611G-2 Use Prior to Serial# 2627560 or Alternate Ice Maker Pt# 7002734 Starting With Serial# 2627560 Use Pt# 7002736 650-2 Use Prior to Serial# 2627660 or Alternate Ice Maker Pt# 7002734 Starting With Serial# 2627660 Use Pt# 7002736 650G-2 Use Prior to Serial Serial# 2630836 or Alternate Ice Maker Pt# 7002734 Starting With Serial# 2630836 Use Pt# 7002736 695-2/3 Use Prior to Serial# 2660861 or Alternate Ice Maker Pt# 4200520 With Harness Pt#7024962 and Shutoff Arm Pt#7026359 Starting With Serial# 2660861 Use Pt# 7002736 685-2/3 Use Prior to Serial# 2662411 or Alternate Ice Maker Pt# 4200520 With Harness Pt#7024962 and Shutoff Arm Pt#7026359 Starting With Serial# 2662411 Use Pt# 7002736 Make sure you are ordering the proper icemaker There are No Refunds!	$189.00

4201760PR Ice Maker	4201760PR Ice Maker 201RIM, 245 201RIM Use regardless of number 245 Use Prior to Serial# 717272 Starting with Serial# 717272, Use Pt# 4200520 Make sure you are ordering the proper icemaker There are No Refunds!	$274.00

7002734PR Ice Maker	7002734PR Ice Maker 550, 611, 650, 680, 690, 685-2, 695-2 NOTE: FOR INTERNATIONAL APPLICATIONS, Contact Us for 4204210 AND 4204230 NOTE: FOR RUDDER ARM, ORDER 7014671 550 Use From Serial #1274690 to #1275889 Prior to Serial #1274690 & after Serial #1275889 Use Pt# 4200520 680 Use Ice Maker Pt# 4200520 With 7026359 and 7024962 690 Use Ice Maker Pt# 4200520 With 7026359 and 7024962 611 Use Prior to Serial #2627085 Starting With #2627085 Use Pt# 7002736 611G Use Prior to Serial #2627560 Starting With #2627560 Use Pt# 7002736 650 Use Prior to Serial #2627660 Starting With #2627660 Use Pt# 7002736 650G Use Prior to Serial #2630836 Starting With #2630836 Use Pt# 7002736 695-2 Prior to Serial #2660861 Use Ice Maker Pt# 4200520 With 7026359 and 7024962 Starting With #2660861 Use Pt# 7002736 685-2 Prior to Serial #2662411 Use Ice Maker Pt# 4200520 With 7026359 and 7024962 Starting With #2662411 Use Pt# 7002736	$274.00

7002736PR Ice Maker	7002736PR Ice Maker 611-3, 611G-3, 650-3, 650G-3, 695-3, 685-3 Icemaker Assy NOTE: INCLUDES 7014671 RUDDER ARM 611-3 Use Starting With Serial #2627085 Prior to Serial #2627085 Use Pt# 7002734 611G-3 Use Starting With Serial #2627560 Prior to Serial #2627560 Use Pt# 7002734 650-3 Use Starting With Serial #2627660 Prior to Serial #2627660 Use Pt# 7002734 650G-3 Use Starting With Serial #2630836 Prior to Serial #2630836 Use Pt# 7002734 695-3 Use Starting With Serial #2660861 Prior to #2660861 Use Pt# 4200520 With 4202730 And 7024962 685-3 Use Starting With Serial #2662411 Prior to #2662411 Use Pt# 4200520 With 4202730 And 7024962	$274.00

7002738PR Ice Maker Replaces Part# 4200521	7002738PR Ice Maker 532, 542, 561, 601F, 632, 642, 632-2/3, 642-2/3 532 Use From Serial#M/P1283390 to M/P1284539 and Starting with Serial #M/P1350590 Prior to #M/P1350590 except between #M/P1283390 to M/P1284539 Use Pt# 4200520 542 Use Starting with Serial #M/P1351190 Prior to Serial #M/P1351190 Use Pt# 4200520 561 Use Starting with Serial #M/P1350840 Prior to Serial #M/P1350840 Use Pt# 4200520 601F Use Prior to Serial #M2631361/P2626960 Starting With Serial #M2631361/P2626960 Use Pt# 7002740 632-2&3 Use Prior to Serial #2648771 Starting With Serial #2648771 Use Pt# 7002740 642-2&3 Use Prior to Serial #2646995 Starting With Serial #2646995 Use Pt# 7002740 Make sure you are ordering the proper icemaker There are No Refunds!	$189.00

7002740PR Ice Maker	7002740PR Ice Maker 601F-2&3, 661-2&3, 632-2&3, 642-2&3, BI-36F, BI-36S, BI-42S, BI-42SD, BI-48S, BI-48SD, IC-27F, 736T-3, 700T-3, ID-30FI, ID-30CI, ID-36CI, ID-24FI, IC-24CI, IC-18FI, IC-30FI, IT-30FI, IT-36CI, IC-24FI, IC-36FI 601F-2&3 Use Starting With Serial #M2631361/ P2626960 Prior to Serial #M2631361/P2626960 Use Pt# 7002738 661-2&3 Use Regardless of Serial Number 632-2&3 Use Starting With Serial #2648771 Prior to Serial #2648771 Use Pt# 7002738 642-2&3 Use Starting With Serial #2646995 Prior to Serial #2646995 Use Pt# 7002738 IC-27F Use Regardless of Serial Number 700TC/I-3 Use Regardless of Serial Number NOTE: Prior to #2598481 Also Order 7023022 700TF/I-3 Use Starting With #3100000 NOTE: Prior to #3100000 Use Pt# 4200520 736TC/I Use Regardless of Serial Number NOTE: Prior to #2591029 Also Order 7023022 736TF/I Use Regardless of Serial Number NOTE: Prior to #2591029 Also Order 7023022 BI-Series Use Regardless of Serial Number NGI Use Regardless of Serial Number	$274.00

7002748PR Ice Maker	7002748PR Ice Maker 2011ICE, 2711, 2811, 550 Icemaker Assy NOTE: IF JUST HARNESS IS NEEDED ORDER Pt# 7016575 2011ICE Use Regardless of Serial Number 2711 Use Regardless of Serial Number NOTE: DOES NOT INCLUDE ICE LEVEL MECHANISM IF NEEDED, ORDER 7019354 DOES NOT INCLUDE ICEMAKER BRACKET IF NEEDED, ORDER 7016923 2811 Use Regardless of Serial Number NOTE: DOES NOT INCLUDE ICE LEVEL MECHANISM IF NEEDED, ORDER 7019354 DOES NOT INCLUDE ICEMAKER BRACKET IF NEEDED, ORDER 7016923 550 Use Prior to #M/P681166 and between #M681565 to #M702716/P700765 Additional Serial Breaks: Use Pt# 4200520 NOTE: DOES NOT INCLUDE ICE LEVEL MECHANISM IF NEEDED, ORDER 4160600(NLA) DOES NOT INCLUDE FRONT ICEMAKER BRACKET. IF NEEDED, ORDER 7016923	$274.00

W10122536PR Icemaker Module Replaces Part# 628366	Icemaker Module Motor module assembly Make sure you are ordering the proper icemaker There are No Refunds!	$88.00

4201460 Dual Ice Maker Inlet Valve	Dual Water Valve Package 590 Use Regardless of Serial Number	$136.00

7014677 Dual Ice Maker Inlet Valve	Dual Water Valve Package 680, 690 Use Regardless of Serial Number 685-2 Use Prior to Serial #2271174 Starting With Serial#2271174 Use Pt# 7004266 695-2/3 Use Prior to Serial #2269189 Starting With Serial#2269189 Use Pt# 7004266	$126.00

7004266 Dual Ice Maker Inlet Valve	685, 685-2, 685-3, 695, 695-2, 695-3 685-2 Use Starting w/Serial #2271174 Prior to Serial #2271174 Use Pt# 7014677 695-2 Use Starting w/Serial #2269189 Prior to Serial #2269189 Use Pt# 7014677 685-3 Use Regardless of Serial Number 695-3 Use Regardless of Serial Number	$129.00

4201450 Ice Maker Inlet Valve	501F Use Starting with Serial# M834904/P836154 Prior to Serial# M834904/P836154 Use Pt# 4201440 511 Use Starting with Serial# M830454 Prior to Serial# M830454 Use Pt# 4201440 532 Use From Serial# M/P786669 to #M/P787068 and From #M824754/P827404 to #M/P1283390 Also from M/P1284539 to #M/P1350590 Prior to Serial# M/P786669 and from #M/P787068 to #M824754/P827404 Use Pt# 4201440 From Serial# M/P1283390 to #M/P1284539 and starting with #M/P1350590 Use Pt# 4202790 542 Use Prior to Serial# M/P1351190 Starting with Serial# M/P1351190 Use Pt# 4202790 550 Use Starting with Serial# M824354/P823954 Prior to Serial# M824354/P823954 Use Pt# 4201440 561 Use From Serial# M825954/P823654 to #M/P1350840 Prior to Serial# M825954/P823654 Use Pt# 4201440 Starting with Serial# M/P1350840 Use Pt# 4202790 700TCI Use Regardless of Serial# 700TFI Use Regardless of Serial# 700BFI Use Regardless of Serial#	$96.00

4201440 Ice Maker Inlet Valve	501F Use Prior to Serial# M834904/P836154 Starting With Serial# M834904/P836154 Use Pt# 4201450 511 Use Prior to Serial# M830454 Starting with Serial# M830454 Use Pt# 4201450 532 Use Prior to Serial #M/P786669 and from #M/P787068 to #M824754/P827404 From Serial# M/P786669 to #M/P787068 and from #M824754/P827404 to #M/P1283390 also from #M/P1284539 to #M/P1350590 Use Pt# 4201450 From Serial# M/P1283390 to #M/P1284539 and starting with #M/P1350590 Use Pt# 4202790 550 Use Prior to Serial# M824354/P823954 Starting With Serial# M824354/P823954 Use Pt# 4201450 561 Use Prior to Serial# M825954/P823654 From Serial# M825954/P823654 to #M/P1350840 Use Pt# 4201450 Starting with Serial# M/P1350840 Use Pt# 4202790 200/300 Use Regardless of Serial Number	$88.00

4202790 Ice Maker Inlet Valve	532 Use From Serial# M/P1283390 to #M/P1284539 and Starting with #M/P1350590 From Serial# M/P786669 to #M/P787068 and #M824754/P827404 to #M/P1283390 and #M/P1284539 to #M/P1350590 Use Pt# 4201450 Prior to Serial# M/P786669 and from #M/P787068 to #M824754/P827404 Use Pt# 4201440 542 Use Starting with Serial# M/P1351190 Prior to Serial# M/P1351190 Use Pt# 4201450 561 Use Starting with Serial# M/P1350840 From Serial# M825954/P823654 to #M/P1350840 Use Pt# 4201450 Prior to Serial# M825954/P823654 Use Pt# 4201440 600 Use Regardless of Serial Number 600-2 Use Regardless of Serial Number 600-3 Use Regardless of Serial Number 700-2 Use Regardless of Serial Number 700TCI-3 Use Prior to Serial# 2421189 Starting with Serial# 2421189 Use Pt# 7004267 700TFI-3 Use Prior to Serial# 2421189 Starting with Serial# 2421189 Use Pt# 7004267 736TCI-3 Use Prior to Serial# 2327045 Starting with Serial# 2327045 Use Pt# 7004267 700BCI-3 Use Prior to Serial# 2421189 Starting with Serial# 2421189 Use Pt# 7004267 700BFI-3 Use Prior to Serial# 2421189 Starting with Serial# 2421189 Use Pt# 7004267	$94.00

7004267 Ice Maker Inlet Valve	700TCI-3 Use Starting with Serial #2421189 Prior to Serial #2421189 Use Pt# 4202790 700TFI-3 Use Starting with Serial #2421189 Prior to Serial #2421189 Use Pt# 4202790 736TCI-3 Use Starting with Serial #2327045 Prior to Serial #2327045 Use Pt# 4202790 700BCI-3 Use Starting with Serial #2421189 Prior to Serial #2421189 Use Pt# 4202790 700BFI-3 Use Starting with Serial #2421189 Prior to Serial #2421189 Use Pt# 4202790 UC-24C Use Regardless of Serial Number	$84.00

Replacement Harnesses Used on New Style Modular Ice Makers
7014702PR Replacement Round Plug Adaptor Replaces Pt# 3022730	Plug Adapter Harness - Round 249FF/I Use Ice Maker Harness Pt# 7020748 *Square connector end plugs into modular ice maker	$32.00

7016575 Replacement Round Plug Adaptor Replaces Pt# 3025030	7016575 Plug, Round IM Adapter (Used in Original IM Package #4202850) *Square connector end plugs into unit harness	$32.00

7016700PR Replacement Harness Replaces Pt# 3025470 Replaces Pt# 7024058	700BF/I-3, 700BC/I-3 Plug Harness Adaptor Use Regardless of Serial Number	$47.00

7015689PR Replacement Harness Replaces Pt# 4322680	501F, 511, 532, 542, 550, 561, 590 Plug Harness Adaptor	$29.00

7024962PR Replacement Harness	680, 690, 685-2/3, 695-2/3 Plug Harness Adaptor	$26.00

7020748PR Replacement Harness	249FF/I Icemaker Harness	$33.00


4202310PR Replacement Tube Heater/Harness Kit	700 Fill Tube Heater & Harness Kit	$62.00

Replacement Shut-off Arms
7012821PR Short Shutoff Arm Replaces Pt# 3140181	201F, 211, 215F, 241, 244, 245, 251, 361, 2411, 2511, 3211, 801 Arm, Icemaker Short SVCE NOTE: For UC-24C Use Pt# 7012820 Contact Us to order Pt# 7012820	$26.50

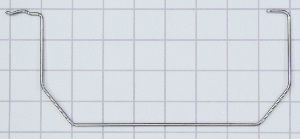

7016662PR Shut off Arm Replaces Pt# 3140220	22IM Shut off Arm	$26.50

7016481PR Shut off Arm Replaces Pt# 3140210	249FF Shutoff Arm - Flat	$47.00

7014697PR Shut off Arm Replaces Pt# 3140200	501F, 532, 542, 561, 700TC/I, 700TF/I, 700BF/I, 700BC/I-3 Icemaker Shut-off Arm 501F Use Regardless of Serial Number 532 Use Prior to Serial #1350590 542 Use Prior to Serial #1351190 561 Use Prior to Serial #1350840 700TC/I Use Starting With Serial #M1207990 Prior to #1207990 Use Pt# 4202270 700TF/I Use Starting With Serial #1207990 Prior to #1207990 Use Pt# 4202270 700BF/I Use Starting With Serial #1207990 Prior to #1207990 Use Pt# 4202270 700BC/I-3 Use Regardless of Serial Number	$19.00

4202730PR Shut off Arm	511, 550, 590 Ice Level Arm Package NOTE: DOES NOT INCLUDE MODULAR ICEMAKER IF NEEDED Use Pt# 4200520 511 Use Regardless of Serial Number 550 Use From #M/P681166 to #M/P681565, also from #M702716/P700765 to #M/P1274690 and starting with #M/P1275889 Prior #M/P681166 and from #M/P681565 to #M702716/P700765 Use Ice Maker Pt# 7002748 From #M/P1274690 to #M/P1275889 Use Ice Maker Pt# 4200522 590 Use Regardless of Serial Number NOTE: SPACERS ARE NO LONGER INCLUDED IF SPACERS ARE NEEDED, Contact Us, Use Pt# 4202650 680/690 Use Pt# 7026359	$62.00

7026359PR Replacement Shut off Arm	680, 690, 685, 695 Icemaker Shutoff Arm 680/690 Use Regardless of Serial Number Use Pt# 7024962 Harness When Installing Pt# 4200520 Ice Maker 695-2/3 Use Prior to Serial #2660861 Use Pt# 7024962 Harness When Installing Pt# 4200520 Ice Maker 685-2/3 Use Prior to Serial #2662411 Use Pt# 7024962 Harness When Installing Pt# 4200520 Ice Maker	$58.00

7014671 Icemaker Rudder Arm	Arm, Icemaker Rudder 550, 611, 650, 680, 690, 611-2, 650-2, 685-2, 695-2 NOTE: To Reduce Ice Level On Models 611, 650, 611-2 Or 650-2, Use Pt# 7016326 550 Use From Serial #1274690 to #1275889 From Serial #M/P681166 to #M/P681565, Also From #M702716/P700765 to #M/P1274690 And Starting With Serial #M/P1275889 Use Part# 4202730	$49.00

7016326 Icemaker Rudder Arm	No Longer Available Arm, Icemaker SVCE (611, 650) NOTE: Only Use to Reduce Ice Level If Standard Rudder Arm is Needed, Use Pt# 7014671

7014668 Icemaker Arm	Arm, Icemaker -Doesn't come with connecting rod Connecting Rod listed below Part# 7015920 700TFI,700TCI,700BFI, 700TFI-2,700TCI-2,700BFI-2,700TCI-3 700TFI-3,736TCI-3,700BCI-3 700BFI-3, 648PROG,661-2/3 700/700-2 Use Regardless of Serial Number 700BC/I-3 Use Regardless of Serial Number 700BF/I-3 Use Regardless of Serial Number 700TC/I-3 Use Regardless of Serial Number 736TC/I-3 Use Regardless of Serial Number 700TF/I-3 Use Regardless of Serial Number 648PRO Use Prior to Serial #2820930 Starting With #2820930 Use Pt# 7011189 661-2/3 Use 3421220	$49.80

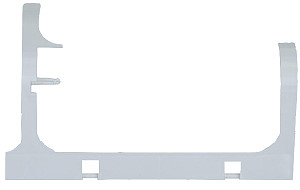

7011189 ICEMAKER ARM	ICEMAKER ARM BI-36S, BI-42S, BI-42SD, BI-48S, BI-48SD, 648PRO, IC-24CI, PRO4850 BI Series Use Regardless of Serial Number 648PRO Use Starting With Serial #2820930 Prior to #2820930 See 7014668 736TC/I-3 Use Pt# 7014668 700TC/I-3 Use Pt# 7014668 700TF/I-3 Use Pt# 7014668	$49.80

7015920 Icemaker Rudder Arm	Arm Connecting Rod, Icemaker (736TCI3) 700TFI,700TCI,700BFI, 700TFI-2,700TCI-2,700BFI-2,700TCI-3 700TFI-3,736TCI-3,700BCI-3 700BFI-3, 648PROG,661-2/3 -Works with Arm above Part# 7014668	$9.80

7023022 Icemaker Rudder Arm	Bracket, Icemaker 700TF/I-3,700TC/I-3, 736TC/I-3,736TF/I-3) NOTE: Also Used On Early 700 Series When Using The 7042073 Ice Maker	$47.75

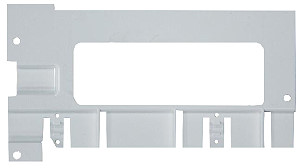

7012852 Icemaker Bracket	Icemaker Bracket BI-36S, BI-36F, BI-42S, BI-42SD, BI-48S, BI-48SD, 648PRO/G, 736TC/I-3, 700TC/I-3, 700TF/I-3 BI Series Use Regardless of Serial Number 648PRO/G Use Starting With Serial #2820930 Prior to #2820930 See 7016112 736TC/I-3 Use Pt# 7023022 700TC/I-3 Use Pt# 7023022 700TF/I-3 Use Pt# 7023022	$47.75

4202270PR Ice Maker Arm Assembly	700TCI, 700TFI, 700BFI Ice Level Arm Assembly	$89.00
