Get your SubZero Parts below:

click here to order your SubZero Switches Now!
Switches

click here to order your SubZero Evaporators Now!
Evaporators

On Sale!
click here to order your SubZero Heat Exchangers Now!
Heat Exchangers

NOW Available!
click here to order your SubZero Compressors Now!
Compressors

NOW Available!

Speak to a Tech LIVE - DIY Refrigerator Repair Assistance - click here

SubZero Controls, Thermistors & Thermostat Replacements

SubZero Model#:

Type of Control

Control#:

"Older Units"
Note: Newer units use an
Electronic Defrost Control
SubZero Defrost Control
6hr/21min
SubZero Thermistor

427, 427R, UC-24, 648PRO, BI-Series,
700-3, 736TC/I, 736TF/I, 736TR, NGI

SubZero Thermistor

4204740


UC-24C
Use Prior to Serial #2934245 and Between
#2934228 and 2934229
Starting With Serial #2934245 and
Between #2934228 and 2934229
Use Pt# 7008700
SubZero Defrost Terminator Thermostat
SubZero Defrost Terminator Thermostat
Refrigerator Thermostats
SubZero Refrigerator Thermostat
SubZero Refrigerator Thermostat
SubZero Refrigerator Thermostat
SubZero Refrigerator Thermostat
SubZero Refrigerator Thermostat
SubZero Refrigerator Thermostat/Baffle
SubZero Thermostat
Freezer Thermostats
SubZero Freezer Thermostat
SubZero Freezer Thermostat
SubZero Freezer Thermostat
SubZero Freezer Thermostat


7014648
Defrost Timer
Replaces Pt# 3081180
SubZero Defrost Control
6hr/21min

$84.75



4204150
Refrigerator Thermistor
400/400-2 Series, 600/600-2 Series, 700-2 Series Tall,
700-3 Series, WS-30, 736TR, 736TC/I
SubZero Refrigerator Thermistor

427/427R
Use Prior to Serial #3172246
Starting With #3172246
Use Pt# 4204740
424
Use Prior to Serial #3100478
Starting With #3100478
Use Pt# 4204740

All 600/600-2 Series(601, 650, etc)
Use Regardless of Serial#

700BC/I-3
Use Prior to Serial 3191157
Starting With #3191157
Use Pt# 4204740
700BF/1-3
Use Prior to Serial #3191730
Starting With #3191730
Use Pt# 4204740
700BR-3
Use Prior to Serial #3191472
Starting With #3311536
Use Pt# 4204740
700TC/I-3
Use Prior to Serial #3311536
Starting With #3311536
Use Pt# 4204740
700TF/I-3
Use Prior to Serial 3313915
Starting With #3313915
Use Pt# 4204740
700TR/-3
Use Prior to Serial #3313355
Starting With #3313355
Use Pt# 4204740
736TR/TC/I
Use Prior to Serial #2970000 Except
Between #2953454 and #2953517 and
Except Between #2955770 and #2955775
Starting With Serial #2970000 and
Also Between #2953454 and #2953517 And
Also Between #2955770 and #2955775
Use Pt# 4204740
WS-30
Use Prior to Serial #3521952
Starting With #3521953
Use Pt# 4204740

$66.50

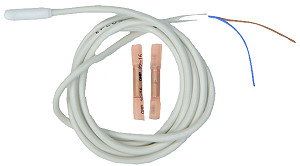

4204740
Refrigerator Thermistor

427, 427R, UC-24, 648PRO, BI-Series,
700-3, 736TC/I, 736TF/I, 736TR, NGI

SubZero Refrigerator Thermistor

736TR/TC/I
Use Starting With Serial #2970000
Use From Serial# 2953454 to #2953517 And
Use From Serial# 2955770 to #2955775

Prior to Serial# 2970000 Except
From #2953454 to #2953517 And Except
From #2955770 to #2955775
Use Pt# 4204150
427/427R
Use Starting With Serial# 3172246

Prior to Serial# 3172246
Use Pt# 4204150
424
Use Starting With Serial# 3100478

Prior to Serial# 3100478
Use Pt# 4204150
700BC/I-3
Use Starting With Serial# 3191157

Prior to Serial# 3191157
Use Pt# 4204150
700BF/I-3
Use Starting With Serial# 3191730

Prior to Serial# 3191730
Use Pt# 4204150
700BR-3
Use Starting With Serial# 3191472

Prior to Serial# 3191472
Use Pt# 4204150
700TC/I-3
Use Starting With Serial# 3311536

Prior to Serial# 3311536
Use Pt# 4204150
700TF/I-3
Use Starting With Serial# 3313915

Prior to Serial# 3313915
Use Pt# 4204150
700TR-3
Use Starting With Serial# 3313355

Prior to Serial# 3313355
Use Pt# 4204150
WS30
Use Starting With Serial# 3521953
Prior to Serial# 3521953
Use Pt# 4204150

$66.50

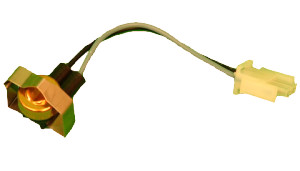

7006594
Defrost Terminator(Thermostat)
Replaces Pt# 3082060

SubZero Defrost Terminator Thermostat
UC-24C
Use Prior to Serial #2934245 and Between
#2934228 and 2934229
Starting With Serial #2934245 and
Between #2934228 and 2934229
Use Pt# 7008700
DO NOT USE ON Models:
601F, 601F-2, 700TC/I, 700TF/I, 700BF/I,
700TC/I-2, 700TF/I-2, 700BF/I-2, 700TC/I-3,
700TF/I-3,700BC/I-3,700BF/I-3,736TC/I,
736TFI
Use Pt# 7015935

$49.55


7015935
Defrost Terminator(Thermostat)
Replaces Pt# 3082090

SubZero Defrost Terminator Thermostat
601F, 601F-2, 700TC/I, 700TF/I, 700BF/I,
700TC/I-2, 700TF/I-2, 700BF/I-2, 700TC/I-3,
700TF/I-3, 700BC/I-3, 700BF/I-3, 736TC/I,
736TFI

CAUTION: DO NOT USE ON MODEL UC-24C
Use Pt# 7006594

Use Prior to Serial #2934245 and Between
#2934228 and 2934229
Starting With Serial #2934245 and
Between #2934228 and 2934229
Use Pt# 7008700

$49.55

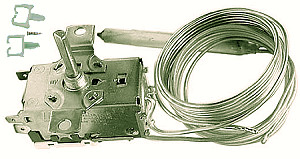

4201260
Refrigerator Thermostat
501R, 511, 532, 542, 550, 561
SubZero Dual Bulb Refrigerator Thermostat

501R
Use Starting with Serial# M821354/P612141
Prior to #M821354/P612141
Use Pt# 4200930
511
Use Regardless of Serial Number
532
Use Starting with Serial# M821354/P612141
Prior to #M821354/P612141
Use Pt# 4200930
NOTE: If Ref Fan Blade is Grey, Replace with
White Blade 7014696
542
Use Regardless of Serial Number
550
Use Starting with Serial# M821354/P612141
Prior to #M821354/P612141
Use Pt# 4200930
561
Use Starting with Serial# M821354/P612141
Prior to #M821354/P612141
Use Pt# 4200930
$186.50

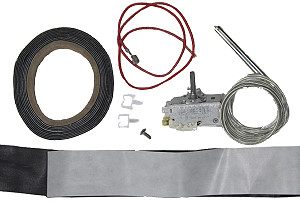

4200930
Refrigerator Thermostat

501R, 532, 550, 561
SubZero Dual Bulb Refrigerator Thermostat

501R
Use Prior to Serial# M821354/P612141
Starting With Serial# M821354/P612141
Use Pt# 4201260

532
Use Prior to Serial# M821354/P612141
Starting With Serial# M821354/P612141
Use Pt# 4201260

NOTE: If Ref Fan Blade is Grey, Replace with
White Blade 7014696
550
Use Prior to Serial# M821354/P612141
Starting With Serial# M821354/P612141
Use Pt# 4201260

561
Use Prior to Serial# M821354/P612141
Starting With Serial# M821354/P612141
Use Pt# 4201260

$186.50


4201270
Refrigerator Thermostat

590
SubZero Refrigerator Thermostat
Use Regardless of Serial Number
$186.50


4201470
Refrigerator Thermostat
201R, 215R, 211, 241, 251, 361, 2411, 2511, 3211
SubZero Refrigerator Thermostat

201R
Use Prior to Serial# 222922 and
Starting With Serial# 261810
From Serial# 222922 to #261810
Use Pt# 7016091
215R
Use Prior to Serial# 222922 and
Starting With Serial# #264461
From Serial# 222922 to #264461
Use Pt# 7016091
211
Use Regardless of Serial Number
241
Use Regardless of Serial Number
251
Use Regardless of Serial Number
361
Use Regardless of Serial Number
2411
Use Prior to Serial# 222922 and
Starting With Serial# #264261
From Serial# 222922 to #264261
Use Pt# 7016091
2511
Use Prior to Serial# 222922 and
Starting With Serial# #264261
From Serial# 222922 to #264261
Use Pt# 7016091
3211
Use Starting with Serial# 257260
Prior to #257260 Use Pt# 7016091
$166.50


7016091
Refrigerator Thermostat
201R, 215R, 2411, 2511, 3211
SubZero Refrigerator Thermostat

201R
Use From Serial# 222922 to #261810

Prior to Serial# 222992 And
Starting With #261810
Use Pt# 4201470
215R
Use From Serial# 222922 to #264461

Prior to Serial# 222922 And
Starting With #264461
Use Pt# 4201470
2411
Use From Serial# 222922 to #264261

Prior to Serial# 222922 And
Starting With #264261
Use Pt# 4201470
2511
Use From Serial# 222922 to #264261

Prior to Serial# 222922 And
Starting With #26426
Use Pt# 4201470
3211
Use Prior to Serial# 257260

Starting With #257260 Use Pt# 4201470

*NOTE: For Control Knob
Use Pt# 3012410
$146.50


7014660
Refrigerator Thermostat
249RP
SubZero Refrigerator Control Thermostat
NOTE: For Control Knob Use Pt# 3012410
$136.50

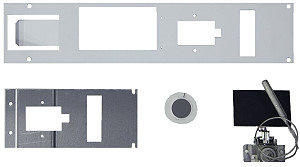

7029572
Thermostat/Baffle Assy
245RFD
Thermostat/Baffle Assy, SVCE

$216.50

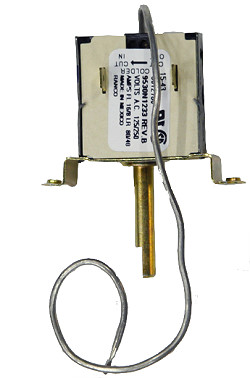

7016049

FREEZER Thermostat
245RP
SubZero FREEZER Control Thermostat
Control, Fre SVCE (245)
Use Starting With Serial #M677016
Prior to Serial #M677016 Use Pt# 7016698
For Control Knob Use Pt# 3012490
$136.50

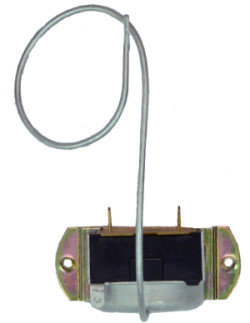

7016698

FREEZER Thermostat
245RP
SubZero FREEZER Control Thermostat
Control, Fre SVCE (245)
245RFD
Use Prior to Serial #M677016

Starting With #677016 Use Pt# 7016049
2011ICE
Use Regardless of Serial Number
For Control Knob Use Pt# 3012490
$146.50



7015755
Freezer Thermostat
Replaces Pt# 3012750
501F
7015755
SubZero Freezer Control, SVCE
Use From #M663116/P679466 to #M/P1004775
Except Between #M960170-M960319 and
#M996400-M996574
Use Part# 7014665 for Serial:
Prior to
#M663116/ P679466 and
Starting With #M/P1004775 and
Between #M960170-M960319 &
#M996400- M996574
$146.50


7014665
Freezer Thermostat
501F
7014665

SubZero Freezer Control, SVCE
Use from:
Prior to
#M663116/ P679466 and
Starting With #M/P1004775 and
Between #M960170-M960319 &
#M996400- M996574
Use Part# 7015755 From:
#M663116/P679466 to #M/P1004775
Except Between #M960170-M960319 and
#M996400-M996574
$146.50


If you have any questions, please let us know.

Contact Email Address: Rtnoww@aol.com

Sorry, but we are so busy filling orders, we don't have time to answer the phone.
If you have questions, please email us.
