Welcome to the New Source of Part Replacements for SubZero Refrigeration...

click here to order your SubZero Switches Now!
Switches

click here to order your SubZero Evaporators Now!
Evaporators

All Back In Stock On Sale!
Distributor & Manufacturer of Various Replacement Parts for SubZero appliances

NON-OEM Replacement Evaporators for SubZero Refrigeration
Better Quality & Properly Redesigned to last longer than the OEM!
Summer Sale on Evaporators!

Better Quality evaporators, made of less corrosive metals then in the past, meaning they should last much longer!
SUBZERO actually did everyone a favor, when they pulled their evaporators, as well as all of their replacement parts,
off the independent market, due to the known leaking issues of their evaporators, unlike any other brand!
RPR has made sure that the exact size specs are maintained, to fit SUBZERO refrigerators/freezers,
but the materials used are the Proper, highest quality, corrosive resistant, 90% Pure Refrigeration Aluminum,
which should lead to many more years of life, than the oem evaporators,
mixed with corrosive copper, at a fraction of the oem price!

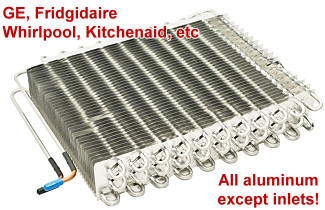

Other Manufacturers

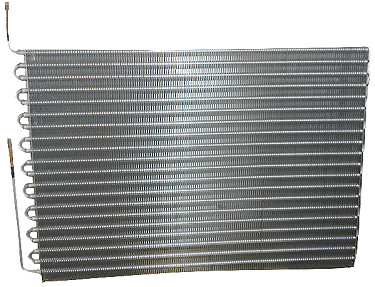

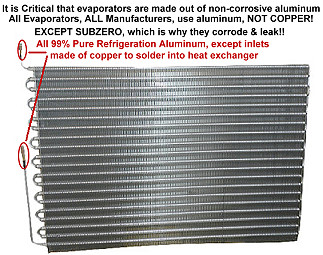

OUR NON-OEM Properly Redesigned Evaporators

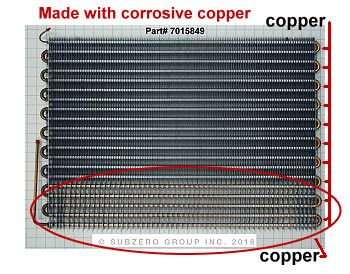

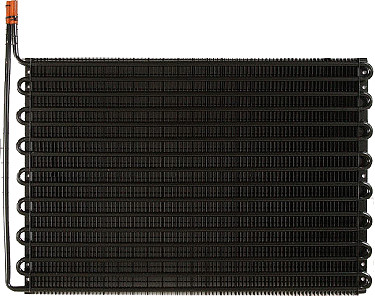

SubZero OEM Evaporator mixed w/corrosive copper
How do I know if my refrigerator evaporator is leaking?

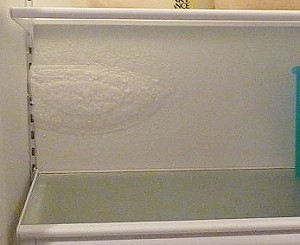

Classic Symptom of a leaking evaporator:
Ice Formation, covered by frost, on the inside back wall(left pic)

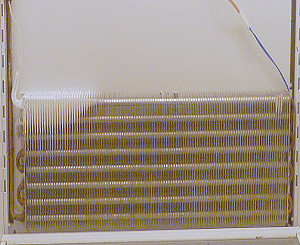

Evaporator capillary inlet, freezing up, with back wall removed(right pic)
Notice the exact location, in both pics above, of the frost and ice buildup.
The rest of the evaporator is void of any freon flowing through it, which is why you can see the silver look of the tubing, after, and below the frost.
The point where the frost is built up, is the farthest that the freon is flowing due to a great loss in freon, because the evaporator is likely leaking, which also causes all the oil from the compressor to be pumped down, into the evaporator, and with a leak in the evaporator, the oil pools up and collects in the evaporator, and restricts it, and the compressor cannot suck the oil back up to the compressor, so the compressor runs low on oil, or without
oil, and overheats the compressor, causing damage to it internally, or it locks up.
Now the evaporator & compressor, both need to be replaced, along with the filter/drier, to get the refrigerator back into normal operationg condition.
If you suspect that the compressor has been running a long time, weeks or months, low on freon, and the oil pooling into the evaporator, then you will need to order the evaporator, for your Model#, on this page, as well as the filter/drier, and also the corresponding compressor for your Model#, which you can find here to complete the repair properly, or it is likely the compressor will fail, soon after.
If your system is an R12 system, it will be updated to the new Freon standard using 414b(hotshot), 414a(causes a slight whining noise most techs say) or R134a(and the entire system MUST be evacuated and cleaned, to rid it of any previous oil residue or particulants).
This is general practice, and R12 is not used anymore, to do part replacement, and recharge, of any R12 systems!

Below are the evaporators we have available at this time, the most common and popular ones:

NON-OEM Replacement Evaporators for SubZero Refrigeration
Better Quality & Properly Redesigned to last longer than the OEM!

You can also Contact us for OEM Freezer evaporators also!
click on your Model# or Refrigerator Evaporator Part#
below to go to that specific evaporator
SubZero Model#'s:

Refrigerator Evaporator Part#'s:

501R

7014701PR

561, 427, 430

4204440PR

550, 650

4204400PR

501R, 601R, 601RG-2/3, 601RG-2/3

4204410PR

511, 532, 590, 611, 632, 690, 695-2

4204420PR

542, 580, 642, 680

4204430PR

More info...

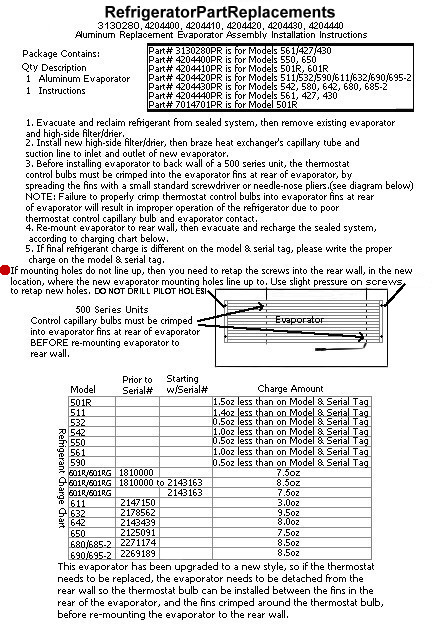

Evaporator Installation Instructions

Right click and "Save As"

If you are looking for a Freezer Evaporator for your unit,
Contact us with your Model & Serial# for your unit,
and we will get back to you with the cost.
Contact Us here

IMPORTANT - READ BEFORE ORDERING!!!
More evaporators are being manufactured, constantly!
Demand is Extremely High!

We may run out, from time to time, so please be patient!
We have been in the Appliance Repair Business for over 35 years
, so we are very aware that evaporators
are considered an emergency replacement item, since we have personally replaced hundreds, if not
thousands of them over 35 years.
Most of the time you can recharge the system, to get the customer by, until you receive the evaporator.

ORDER NOW, Below!

Please Be Patient, if they are out of stock!
We will ship orders in the order they come in, so do not delay in ordering, even if they are out of stock!


NON-OEM Replacement Evaporators for SubZero Refrigeration
Don't fall into this same trap, by having inexperienced techs install your evaporator!

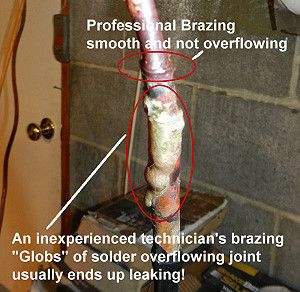

Recent customer, Mr Leonard's, so-called Technician, Screw-up!
Please have a Qualified Technician Install your evaporator, so you don't have disastrous results,
like Mr Leonard did with his unqualified tech, that created this brazing disaster below:

Mr Leonard sent this evaporator back to us, claiming that it had a leak in it,
and his so-called technician that attempted to install it, charged him a lot
of extra money to install a different evaporator, because he was not an experienced
and qualified technician, and totally messed up the installation,
leaving a leak in his amateur Solder joint! See pic above...

NO REFUNDS FOLKS!

Get a Qualified and Experienced Tech to install the evaporator!
Handymen, and the Average Customer
is NOT who should try to replace the evaporator!

Do not think you can watch a youtube video to do this job!
It is suggested that you DO NOT CALL A
SUBZERO AUTHORIZED SERVICE COMPANY!

ONLINE REVIEWS STATE THEY have been known to Severely Overcharge Customers,
and they also will NOT INSTALL AN EVAPORATOR YOU PURCHASE, and supply them!

To Find an Independent Service Company...
click here: Independent Service Company Locator


BEWARE of Imitations at Dramatically Higher Prices!
Every single Evaporator is Leak & Pressure Tested 3 times, Thoroughly
before being shipped out to you!
So, if you have a leak after installation, check your brazing joints,
because you left a leak, which is very common, even for experienced techs!

Evaporators are Not to be installed by just anyone,
but ONLY by an experienced and qualified sealed system service technician!
There are No Refunds/Returns, for incorrect installation and damage to the evaporator!

Summer Sale on Evaporators!

Evaporator
Model
Specs
USA Only
Buy Now!
International Only
Buy Now!



Refrigerator/Freezer
UV Dye Filter/Drier
Replacement for
Replacement for SubZero OEM 7006964
NEW for SubZero Refrigeration
Smaller in diameter/SAME Equivalent Filter!

  • 100% XH-9 Beaded desiccant
  • Compatible with all new and existing refrigerants and oils.
  • Reduces wear & tear on component parts
  • Maximum working pressure 500psi.
  • Use on capillary or expansion valve systems.
  • Hermetically sealed, directional flow with access valve.
  • Copper shells and end tubes.
  • 100 Micron filter sieve.
  • Easy break off grooved ends.
  • Reduces clogged capillary tubes.
  • Magnetic reduction filter reduces microscopic steel, iron, & stainless steel particles as the refrigerant passes through the system.

IN STOCK
USA ONLY
On Sale: $26.95
Retail: $30.95
SubZero OEM Price: $34.09
IN STOCK
International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!
On Sale: $26.95
Retail: $30.95
SubZero OEM Price: $34.09


Accumulator
7015937
Accumulator
501R, 501F, 601F, 601F-2
Not used with all Serial Dates
Check 1st to make sure you need it

$49.65



7014701PR Evaporator

Replaces Part# 3130240

501R
Use Prior to Serial #1004775
Except Between
#M959920 to M960169

Starting w/Serial #1004775
& Between #959920-#960169
Use Pt# 4204410

Accumulator for:
501R, 501F, 601F, 601F-2

Not used with all Serial Dates
Check 1st to make sure you need it
Use Part# 7015937


Installation Instructions

Right click and "Save As"

501R Parts Manual Link

Make sure you are ordering the proper evaporator.
There are No Refunds!

MUST BE INSTALLED BY LICENSED & QUALIFIED TECHNICIANS OR WARRANTY VOID!

Due to this evaporator being considered oversized by the USPS, the shipping rate is slightly higher, than the smaller sized evaporators.

Dimensions:
29" wide
20" tall
1" deep
IN STOCK
USA ONLY
On Sale: $165.00
Retail: $195.00
SubZero OEM Price: $243.26

Normal Shipping
(4-7 days)


*NEW* - RUSH
Priority Shipping

(2-3 day)

International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!

$180.00


4204410PR Refrigerator Evaporator
Replaces Part# 3130390

501R, 601R, 601RG-2/3, 601RG-2/3

501R
Use Starting w/Serial #1004775
& Between #959920-#960169

Prior to Serial #1004775
Except Between
#M959920 to M960169
Use Pt# 7014701

601R, 601R-2/3

Use Regardless of Serial#

601RG-2/3
Use Regardless of Serial#


Installation Instructions

Right click and "Save As"

501R Parts Manual Link
601R Parts Manual Link
601RG Parts Manual Link

Make sure you are ordering the proper evaporator.
There are No Refunds!

MUST BE INSTALLED BY LICENSED & QUALIFIED TECHNICIANS OR WARRANTY VOID!

Due to this evaporator being considered oversized by the USPS, the shipping rate is slightly higher, than the smaller sized evaporators.

Dimensions:
28" wide
20" tall
1" deep
IN STOCK
USA ONLY
On Sale: $175.00
Retail: $190.00
SubZero OEM Price: $243.73

Normal Shipping
(4-7 days)


*NEW* - RUSH
Priority Shipping

(2-3 day)

International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!

$175.00

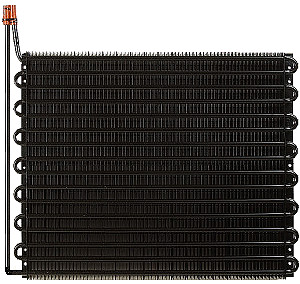

4204440PR Refrigerator Evaporator
Replaces Part# 3130280
561/427/430
Use regardless of Serial#
427-2
, 430-2
Use Pt# 3130640


Installation Instructions

Right click and "Save As"

561 Parts Manual Link
427 Parts Manual Link
430 Parts Manual Link

Make sure you are ordering the proper evaporator.
There are No Refunds!

MUST BE INSTALLED BY LICENSED & QUALIFIED TECHNICIANS OR WARRANTY VOID!

Dimensions:
15" wide
12" tall
1" deep
IN STOCK
USA ONLY
On Sale: $125.00
Retail: $145.00

SubZero OEM Price: $160.00

Normal Shipping
(4-7 days)


*NEW* - RUSH
Priority Shipping

(2-3 day)

International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!

$135.00

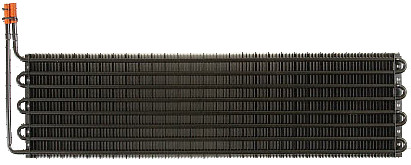

4204400PR Refrigerator Evaporator
Replaces Part# 3130270

550/650

550
Use Regardless of Serial#

650
Use Prior to Serial #2128097
Starting with #2128097
Use Pt# 7009366


Installation Instructions

Right click and "Save As"

550 Parts Manual Link
650 Parts Manual Link

Make sure you are ordering the proper evaporator.
There are No Refunds!

MUST BE INSTALLED BY LICENSED & QUALIFIED TECHNICIANS OR WARRANTY VOID!

Dimensions:
29" wide
8" tall
1" deep
IN STOCK
USA ONLY
On Sale: $145.00
Retail: $160.00

SubZero OEM Price: $177.00

Normal Shipping
(4-7 days)


*NEW* - RUSH
Priority Shipping

(2-3 day)

International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!

$145.00


4204420PR Refrigerator Evaporator
Replaces Part# 3130260

511/532/590
611/611-2/632
632-2/690/695-2

---------------------------
511/532/590
611/632/690

USE REGARDLESS OF SERIAL#

532
USE REGARDLESS OF SERIAL#
Note: Prior to Serial #681566
an accumulator was used in production that Must be Discarded when evaporator is replaced

695-2
Use Prior to Serial #M2275455/#P2278219
Starting w/Serial# M2275455/ #P2278219
Use Pt# 7009366

611-2
Use Prior to Serial #2147190
Starting With Serial #2147190
Use Pt# 7009366

611G-2
Use Pt# 7009366

632-2
Use Prior to Serial #2128562
Starting With Serial #2128562
Use Pt# 7009366


Installation Instructions

Right click and "Save As"

511 Parts Manual Link

532 Parts Manual Link

590 Parts Manual Link

611 Parts Manual Link

632 Parts Manual Link
690 Parts Manual Link

695-2 Parts Manual Link

Make sure you are ordering the proper evaporator.
There are No Refunds!

MUST BE INSTALLED BY LICENSED & QUALIFIED TECHNICIANS OR WARRANTY VOID!

Dimensions:
24" wide
16" tall
1" deep
IN STOCK
USA ONLY
On Sale: $150.00
Retail: $165.00
SubZero OEM Price: $177.00

Normal Shipping
(4-7 days)


*NEW* - RUSH
Priority Shipping

(2-3 day)

International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!

$150.00


4204430PR Refrigerator Evaporator
Replaces Part# 3130420

542 / 580
642 / 680

542
Use regardless of Serial#

642/642-2
Use Prior to Serial #2143499
Starting with Serial #2143499
Use Pt# 7009366

680/685-2
Use Prior to Serial #M2270483/#P2290992
Starting with Serial
#M2270483/#P22909926
Use Pt# 7009366


Installation Instructions

Right click and "Save As"

542 Parts Manual Link
642 Parts Manual Link
680 Parts Manual Link

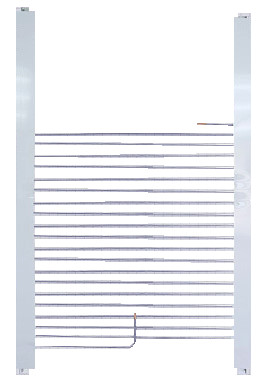

Make sure you are ordering the proper evaporator.
There are No Refunds!

MUST BE INSTALLED BY LICENSED & QUALIFIED TECHNICIANS OR WARRANTY VOID!

Dimensions:
20" wide
16" tall
1" deep
IN STOCK
USA ONLY
On Sale: $145.00
Retail: $165.00

SubZero OEM Price: $183.60

Normal Shipping
(4-7 days)


*NEW* - RUSH
Priority Shipping

(2-3 day)

International Only
ORDER HERE
If you are International
and you Order USA Only,
it will be Refunded!

$150.00


Replacement Parts for SubZero appliances

If you have any questions, please let us know.
Contact Email Address: Rtnoww@aol.com

Sorry, but we are so busy filling orders, we don't have time to answer the phone.
If you have questions, please email us.


Home | About Us | Wholesale Application | Parts Distributor Login | Service Company Login | Contact Us

Sale on Evaporators | Heat Exchangers | Compressors | Filter/Drier | Condenser Motors

Slide Rails | Light Bulbs | Ice Makers | Door Gaskets | Switches | Controls | Heaters | More...

Model & Serial Tag Location | Return Policy

SubZeroPartReplacements.com © 2013 All Rights Reserved
